electrical bicycle E-bike Motor MXUS 36V 250W 350W 48V 500W High Speed Brushless Gear Hub Motor Front Rear cassette Wheel Drive XF07 XF08 XF08C  XF15F

Price:
USD
$70.00
Wholesale:
2+
$65.00
    Please select the information you wantX
  • Model+Voltage+Power:
    XF07 Front 36V 250W
    XF08 Rear Freewheel​ 36V 250W
    XF08C Rear Cassette Freewheel36V 250W
    XF15 Front 48V 500W
    XF15 Rear Freewheel​ 36V 350W
    XF15 Rear Freewheel​ 48V 500W
    XF15C Rear Cassette Freewheel 36V 350W
    XF15C Rear Cassette Freewheel 48V 500W
  • Ships From:
    China
    Germany
Quantity:
-
+
(5892 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from

free shipping:price include delivery fee
From Pswpower

If you from follow country,and choose ship from Germany warehouse. free shipping,NO taxes,Taxes is paid by us, also we will send it by DHL with tracking number,delivery time about 4-6 working day.
Belgium, Luxembourg, Slovakia, Czech, Hungary, Austria, Netherlands, Denmark, France, Germany,lreland, Italy, Poland, Slovenia, Spain, Finland, Latvia, Lithuania, Sweden, Bulgaria, Estonia, Portugal, Romania,Croatia
Follow country need add US$15
Iceland,Greece,Switzerland
Follow country need add US$25
Norway
If you from Norway or Switzerland,we will declare value US$65 for motor,you should pay second time taxes.
If you from United Kingdom.you can choose ship from United Kingdom,NO taxes,Taxes is paid by us.Ship from Germany warehouse. we will declare value motor US$65, Import tax 2%.
If you from United States,Canada,Mexico.you can choose ship from USA warehouse.we will declare value battery US$60.
If you from Russian Federation.you can choose ship from Russian Federation warehouse.
electrical bicycle E-bike Motor MXUS 36V 250W 350W 48V 500W High Speed Brushless Gear Hub Motor Front Rear cassette Wheel Drive XF07 XF08 XF08C  XF15F XF15R

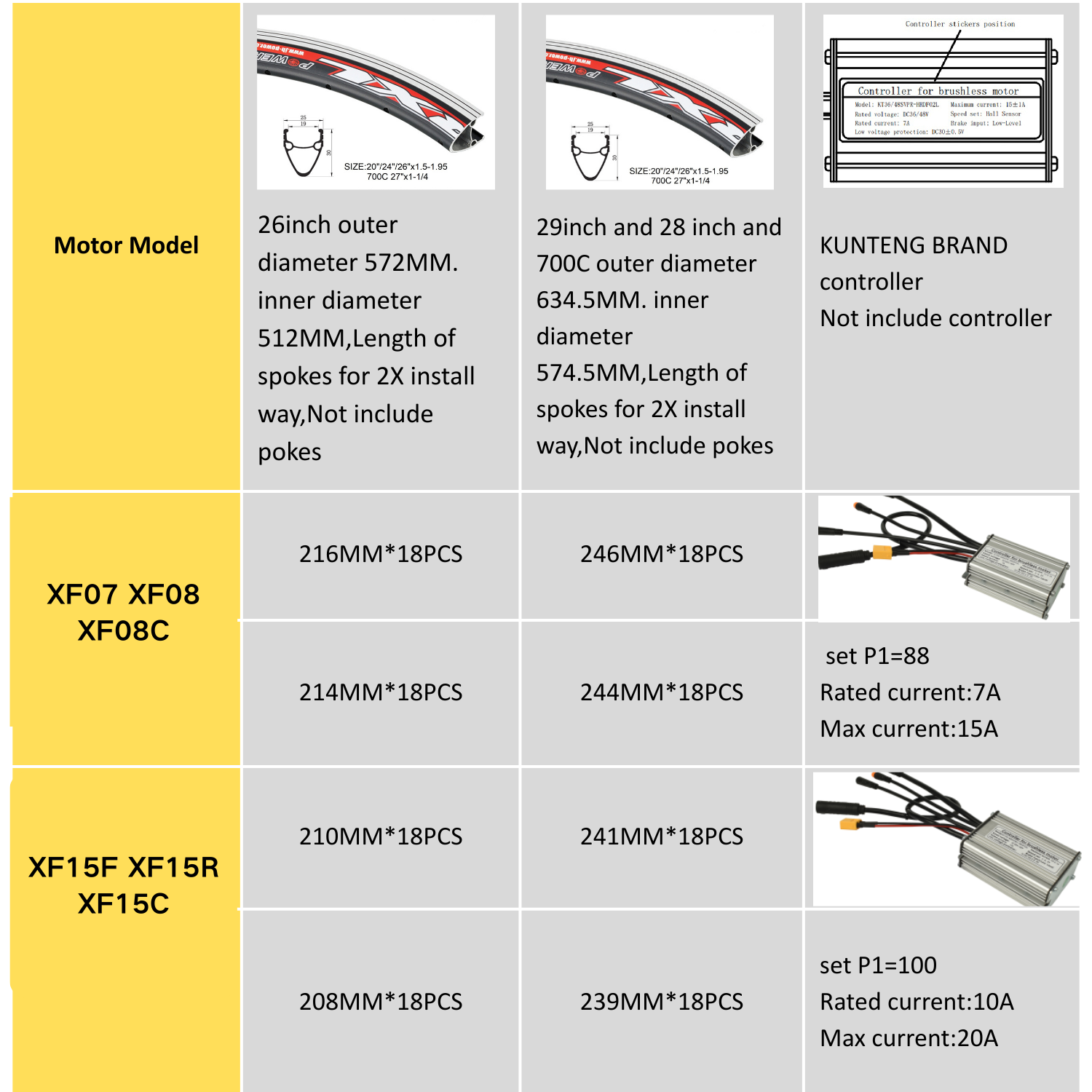

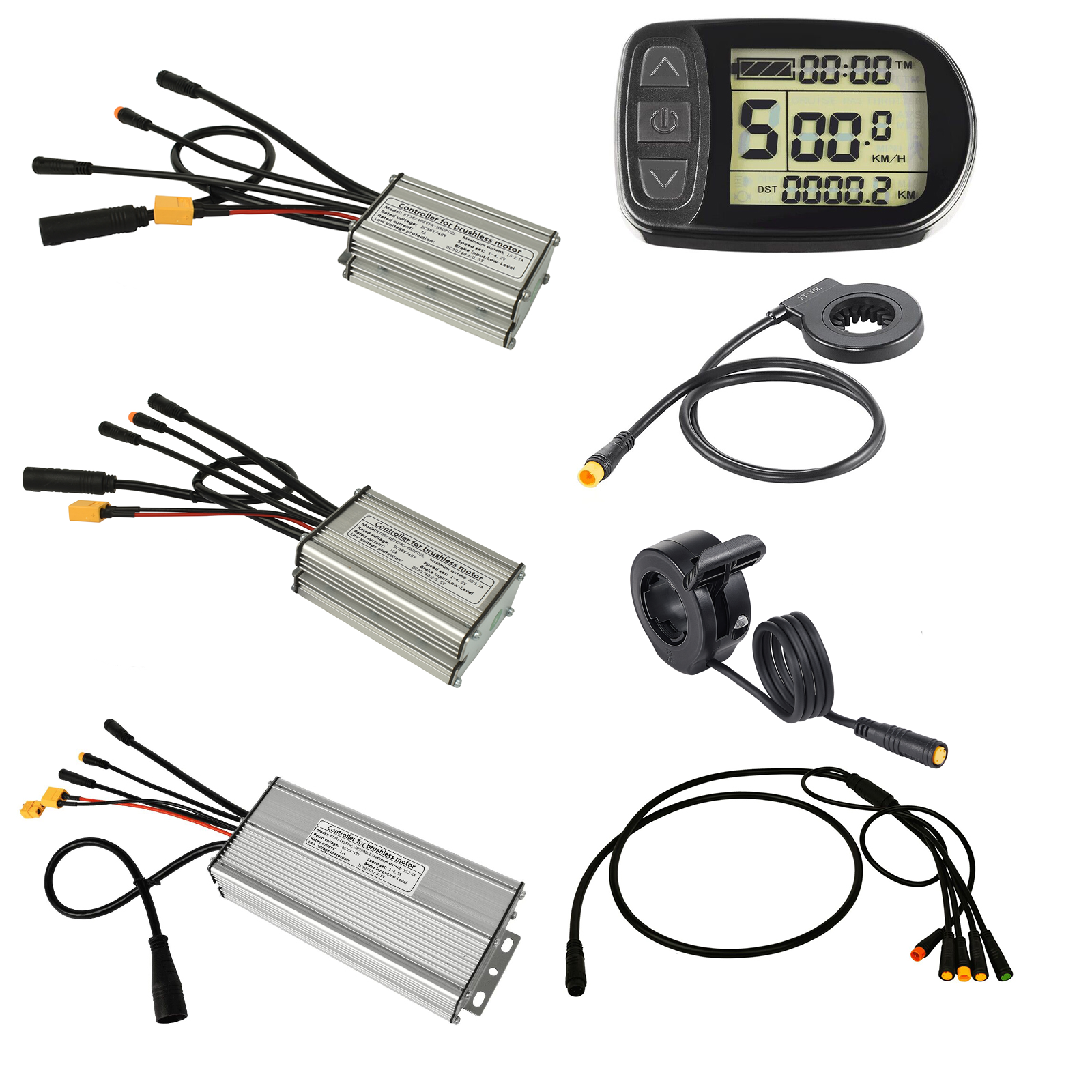

 you can buy KT36/48SVPR-HRDF02L 15A controller for the waterproof cable motor, KT24/36SVPR-HRD01 15A  for the Normal cable motor.

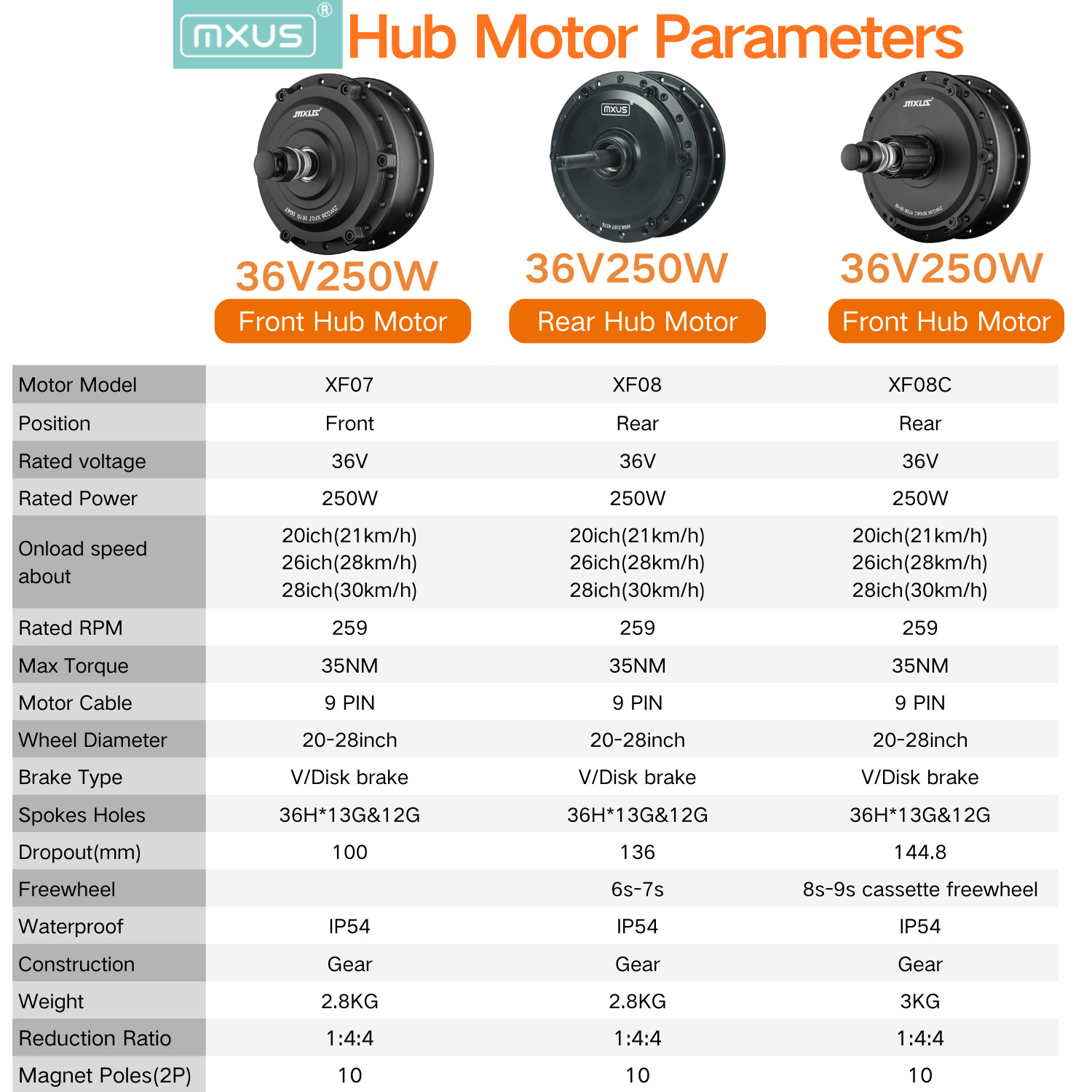

XF07 Front Motor
Position                                  Front
Construction                          Gear
Rated Voltage(V)                       36
Rated Power(W)                       250
Weight(Kg)                                  2.8
Reduction Ratio                     1:4.4
Wheel Diameter(lnch)              20-28
Rated Speed(km/h)             RPM 270
Magnet Poles(2P)                         10
Fork size (Dropout Size)         100mm
Brake Type                    V/Disk brake
Operating Temperature(℃)      -20-45
Efficiency(%)                         ≥ 78%
Color                                       Black
Cabling Route          Shaft center right
Noise Grade(DB)                         ≤55
IP Grade                                   IP54
Salt Spray Test Standard           24/96
Connector:hall sensor and sensorless compatible
Speed Detection Signal(Pulses/Cycle)  1
Certifications ROHS/CE
Spoke Specification 36H*13G
Cable Length(mm), Connection Type 250 G9.1

XF08 Rear Freewheel Motor
Position                                  Rear
Construction                          Gear
Rated Voltage(V)                       36
Rated Power(W)                       250
Weight(Kg)                                  2.8
Reduction Ratio                     1:4.4
Wheel Diameter(lnch)              20-28
Rated Speed(km/h)             RPM 270
Magnet Poles(2P)                         10
Fork size (Dropout Size)          136mm
Freewheel                               6s-9s
Brake Type                    V/Disk brake
Operating Temperature(℃)      -20-45
Efficiency(%)                         ≥ 78%
Color                                       Black
Cabling Route          Shaft center right
Noise Grade(DB)                         ≤55
IP Grade                                   IP54
Salt Spray Test Standard           24/96
Connector:hall sensor and sensorless compatible
Speed Detection Signal(Pulses/Cycle)  1
Certifications ROHS/CE
Spoke Specification 36H*13G
Cable Length(mm), Connection Type 250 G9.1

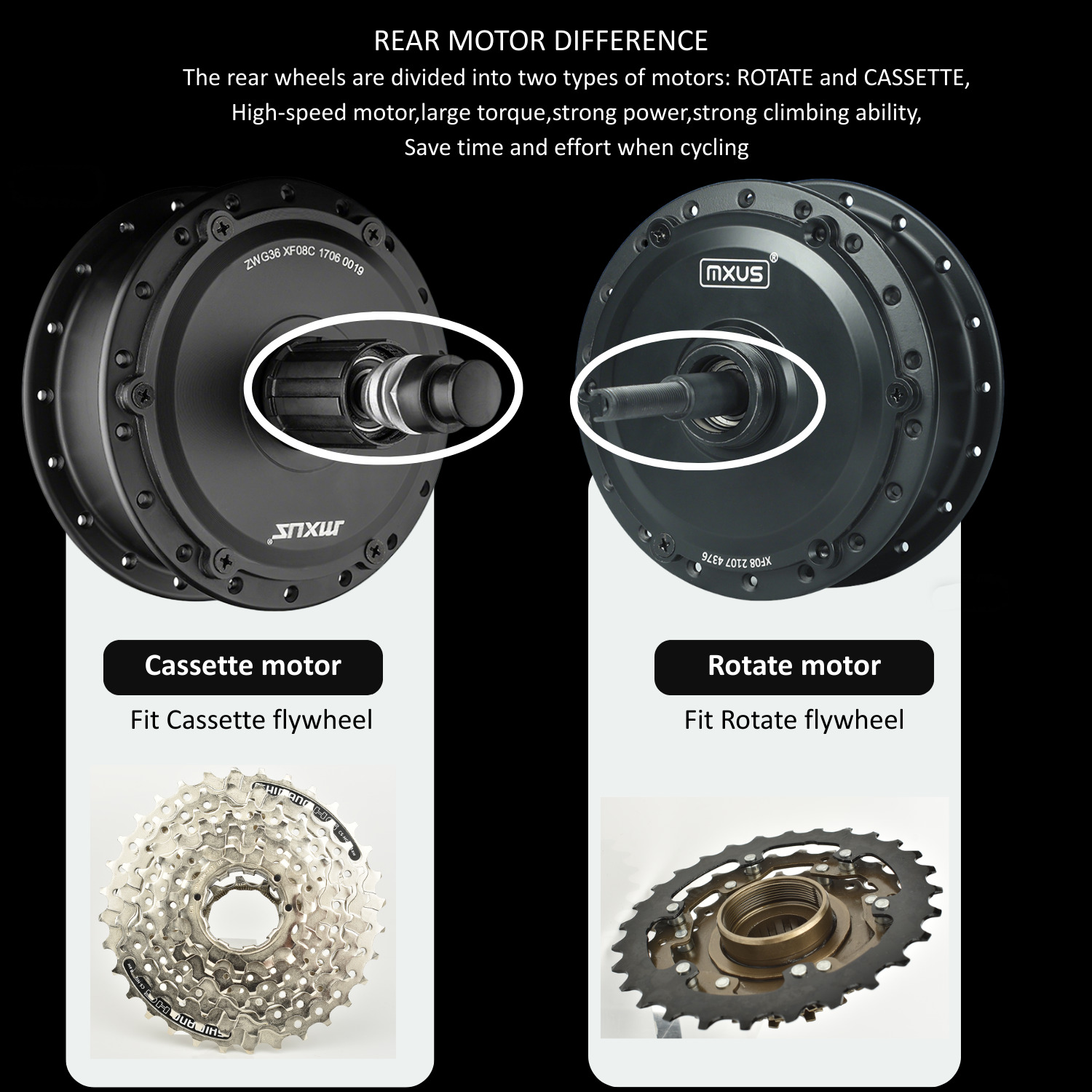

XF08C Rear Cassette Motor
Position                 Rear
Construction                          Gear
Rated Voltage(V)                       36
Rated Power(W)                       250
Weight(Kg)                                  3
Reduction Ratio                     1:4.4
Wheel Diameter(lnch)              20-28
Rated Speed(km/h)             RPM 270
Magnet Poles(2P)                         10
Fork size (Dropout Size)         144mm
Freewheel   8s-10s cassette freewheel
Brake Type                    V/Disk brake
Operating Temperature(℃)      -20-45
Efficiency(%)                         ≥ 78%
Color                                       Black
Cabling Route          Shaft center right
Noise Grade(DB)                         ≤55
IP Grade                                   IP54
Salt Spray Test Standard           24/96
Connector:hall sensor and sensorless compatible
Speed Detection Signal(Pulses/Cycle)  1
Certifications ROHS/CE
Spoke Specification 36H*13G
Cable Length(mm), Connection Type 250 G9.1


you can buy KT36/48SVPRD-HRDF02L 20A controller for the waterproof cable motor, KT24/36SVPR-HRD01 20A  for the Normal cable motor.

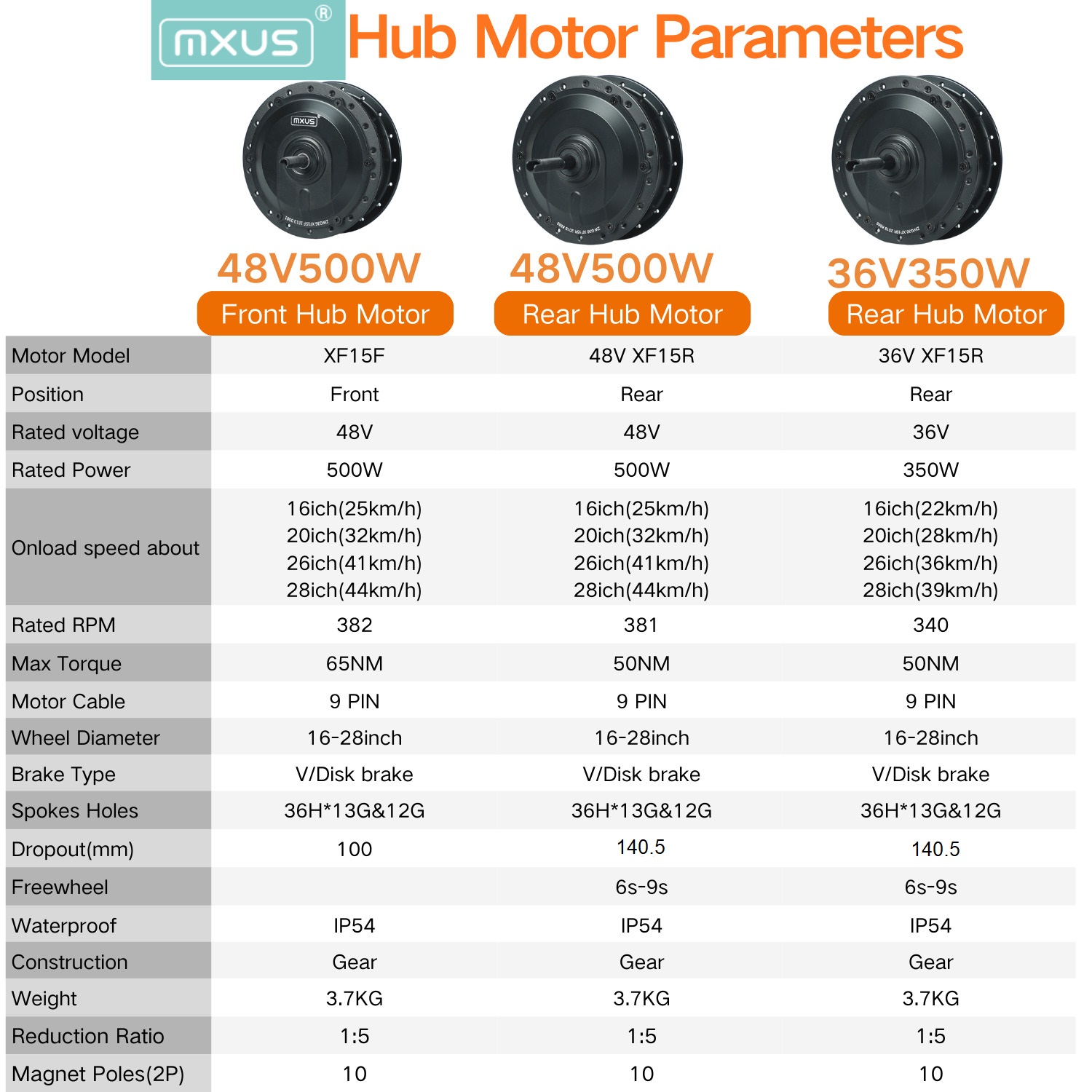

XF15 Front Motor
Position                                  Front
Construction                            Gear
Rated Voltage(V)                    48
Rated Power(W)                  500
Weight(Kg)                                3.7
Reduction Ratio                        1:5
Wheel Diameter(lnch)              20-28
Rated Speed(km/h)      48V 500W RPM 380
Magnet Poles(2P)                         10
Fork size (Dropout Size)         100mm
Brake Type                    V/Disk brake
Operating Temperature(℃)      -20-45
Efficiency(%)                         ≥ 78%
Color                                       Black
Cabling Route          Shaft center right
Noise Grade(DB)                         ≤55
IP Grade                                   IP54
Salt Spray Test Standard           24/96
Connector:hall sensor and sensorless compatible
Speed Detection Signal(Pulses/Cycle)  1
Certifications ROHS/CE
Spoke Specification 36H*13G
Cable Length(mm), Connection Type 250 G9.1

XF15 Rear Freewheel Motor
Position                                  Rear
Construction                           Gear
Rated Voltage(V)                   48/36
Rated Power(W)                  500/350
Weight(Kg)                                 3.7
Reduction Ratio                          1:5
Wheel Diameter(lnch)              20-28
Rated Speed(km/h) 48V 500W RPM 380
Magnet Poles(2P)                         10
Fork size (Dropout Size)          139mm
Freewheel                               6s-9s
Brake Type                    V/Disk brake
Operating Temperature(℃)      -20-45
Efficiency(%)                         ≥ 78%
Color                                       Black
Cabling Route          Shaft center right
Noise Grade(DB)                         ≤55
IP Grade                                   IP54
Salt Spray Test Standard           24/96
Connector:hall sensor and sensorless compatible
Speed Detection Signal(Pulses/Cycle)  1
Certifications ROHS/CE
Spoke Specification 36H*13G
Cable Length(mm), Connection Type 250 G9.1

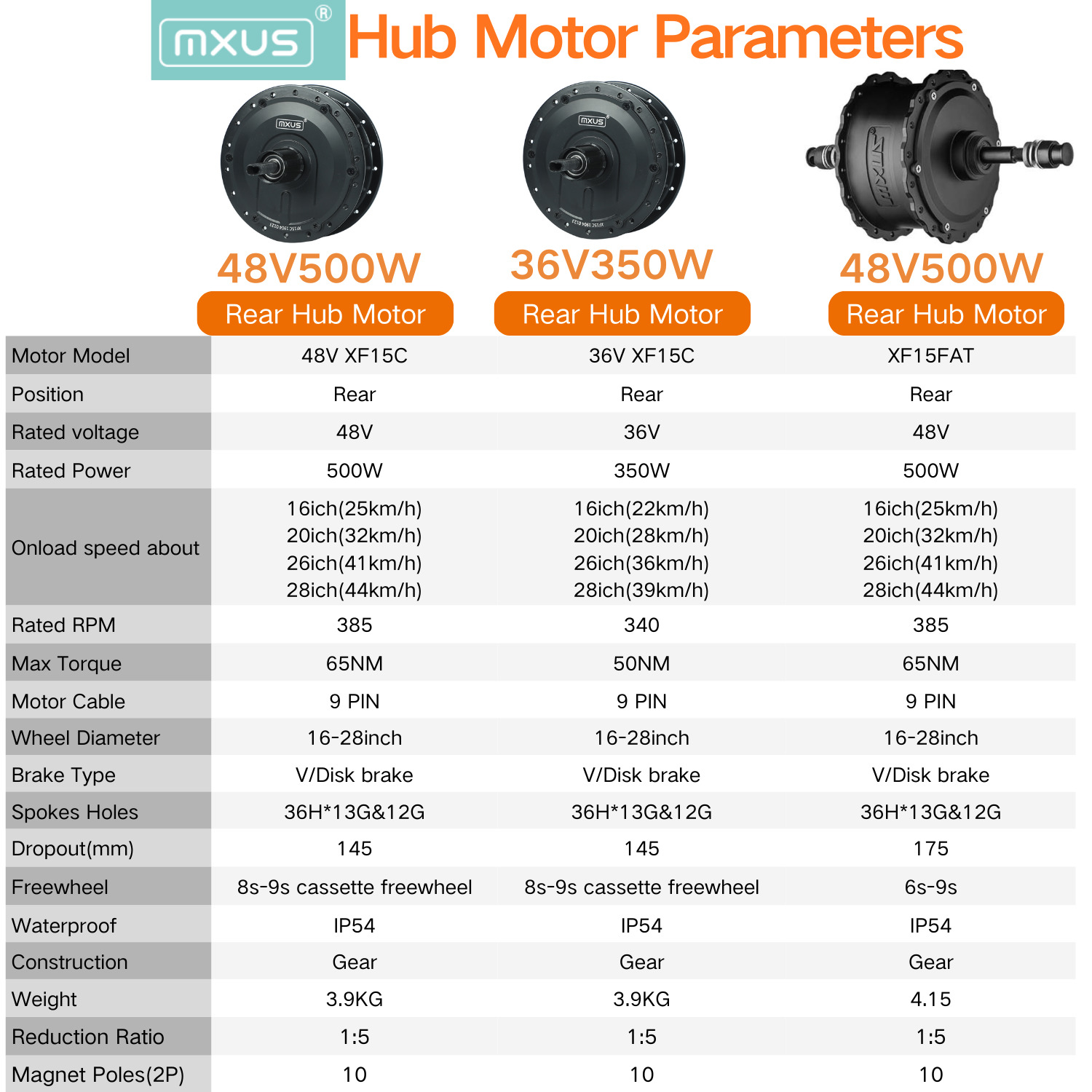

XF15C Rear Cassette Freewheel Motor
Position                                 Rear
Construction                          Gear
Rated Voltage(V)                   48/36
Rated Power(W)                500/350
Weight(Kg)                                3.9
Reduction Ratio                        1:5
Wheel Diameter(lnch)              20-28
Rated Speed(km/h)   48V 500W RPM 380
Magnet Poles(2P)                         10
Fork size (Dropout Size)         145mm
Freewheel   8s-10s cassette freewheel
Brake Type                    V/Disk brake
Operating Temperature(℃)      -20-45
Efficiency(%)                         ≥ 78%
Color                                       Black
Cabling Route          Shaft center right
Noise Grade(DB)                         ≤55
IP Grade                                   IP54
Salt Spray Test Standard           24/96
Connector:hall sensor and sensorless compatible
Speed Detection Signal(Pulses/Cycle)  1
Certifications ROHS/CE
Spoke Specification 36H*13G
Cable Length(mm), Connection Type 250 G9.1

Packing list:
1pcs MXUS Motor

Motor Cable: Front motor with total 1.5M 9 PIN Waterproof cable,Rear Freewheel​ and Rear Cassette Freewheel motor with total 1M 9 PIN Waterproof cable

Model Torque: NM
XF07 36V250W 35
XF08 36V250W 35
XF08C 36V250W 35
XF15F 48V500W 65
XF15R 48V500W 65
XF15C 48V500W 65
XF15C 36V350W 50
XF15R 36V350W 50


Warranty:

1 year (based on the purchase data): Free repair,buyer pay for return postage,
 resend postage free,buyer should return to UK or France for repair.

Payment:
The payment isn't included the remote fee. There will have extra cost if your address is belong to remote areas.

Return & Refund:
After receiving the item,buyer should start a return within 7 days.Return postage will be paid by buyer.The return items must be in original conditions never used.Buyer can not return to sender address,we will provide local return address to buyer.
