BAFANG G020 500W 48V 26" 27.5" 28" rear hub for cassette 8/9/10 Kit IP65 KT-LCD5 with spokes assembled E-Bike conversion Kit motor (V or Disc Brake)

Price:
    Please select the information you wantX
  • Rim size:
    26inch
    700C(28inch)
    27.5inch
  • Ships From:
    Germany
    China
Quantity:
-
+
(0 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from

free shipping:price include delivery fee
From Pswpower


If you from follow country,and choose ship from Germany warehouse. free shipping,NO taxes,Taxes is paid by us, also we will send it by DHL with tracking number,delivery time about 4-6 working day.
Belgium, Luxembourg, Slovakia, Czech, Hungary, Austria, Netherlands, Denmark, France, Germany,lreland, Italy, Poland, Slovenia, Spain, Finland, Latvia, Lithuania, Sweden, Bulgaria, Estonia, Portugal, Romania,Croatia
Follow country need add US$15
Iceland,Greece,Switzerland
Follow country need add US$25
Norway
If you from Norway or Switzerland,we will declare value US$65 for motor,you should pay second time taxes.
If you from United Kingdom.you can choose ship from Germany warehouse. we will declare value motor US$65, Import tax 2%.

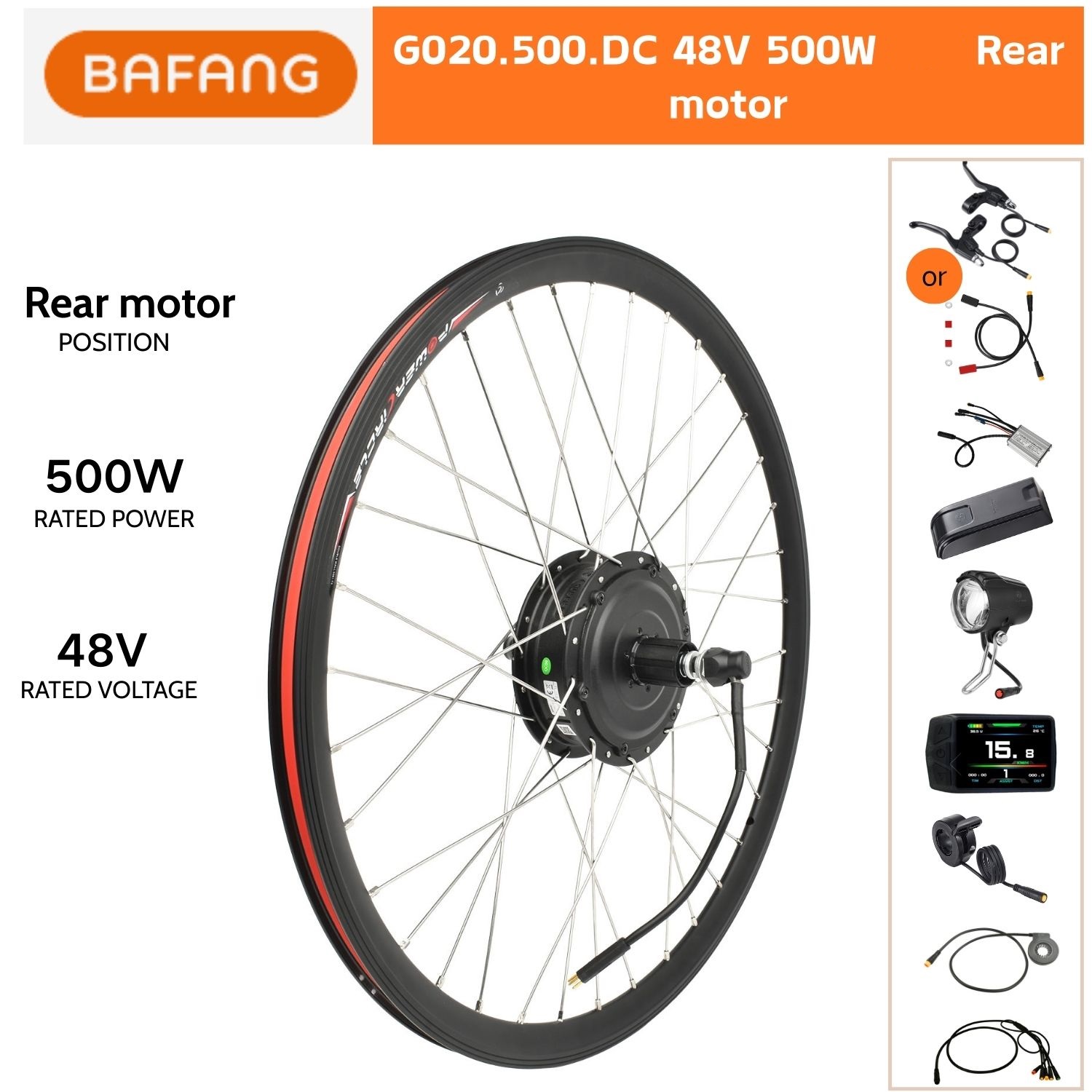

BAFANG G020 500W 48V 26" 27.5" 28" rear hub for cassette 8/9/10 Kit IP65 KT-TF01 with spokes assembled E-Bike conversion Kit hub motor (V-Brake or Disc Brake)
High quality and durable original BAFANG (8Fun) branded Hub motor.
The spokes are 2-way crossed with extra strong 12G (2.6mm) spokes

The e-bike conversion kit rear hub motor is easy to install.
The gear cassette 8/9 or 10 speed will be reused
With a bit technical knowledge it is an easy e-bike conversion.
The original rear wheel will be replaced by the e-bike hub motor.
( Rim and spokes are assembled )

Power: 500 Watt 48V
Torque: 45 Nm

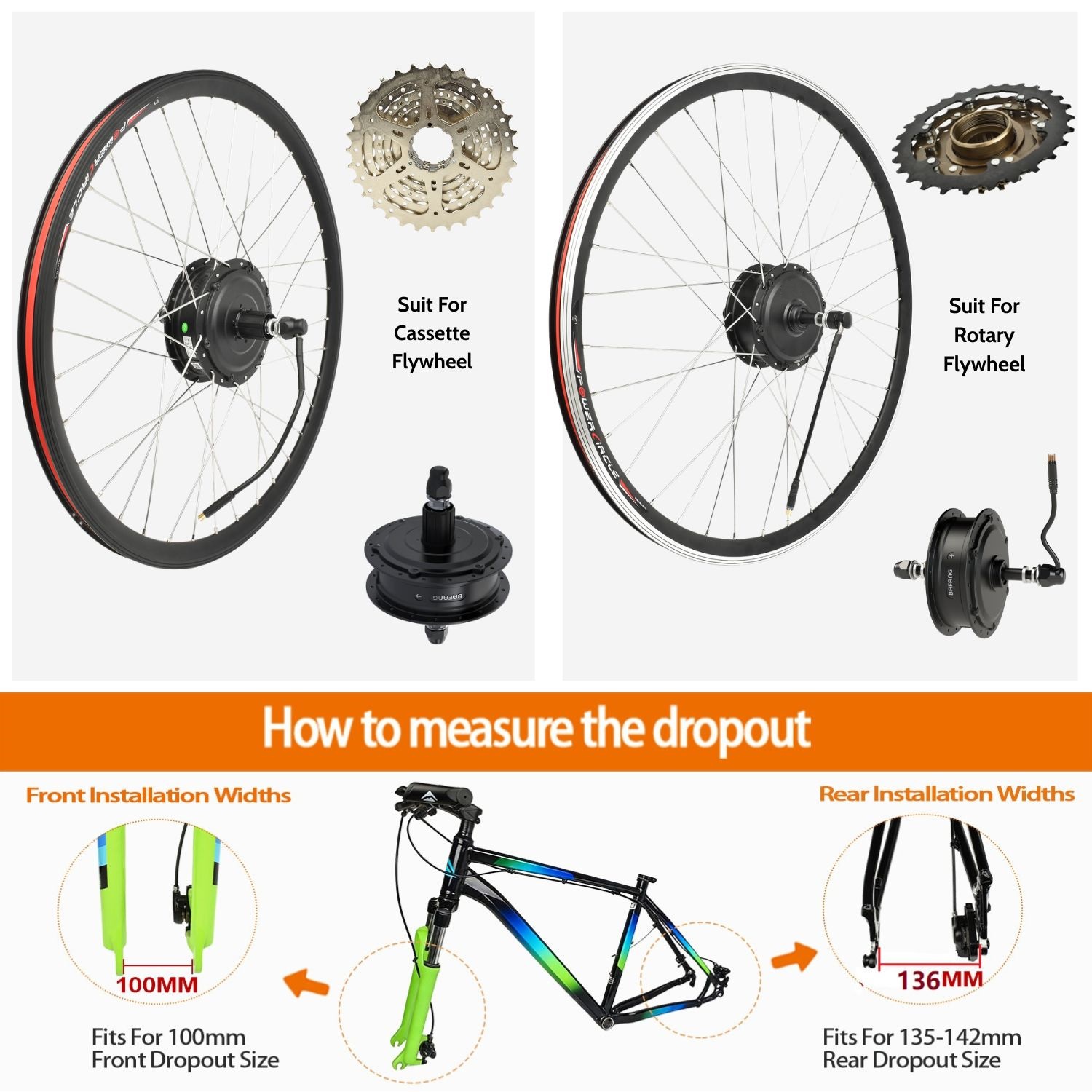

Bottom bracket size: 138mm
waterproof: IP 65, Motor IP65
batterie connector :
weight motor / assembled: 3,4kg / 4,7kg

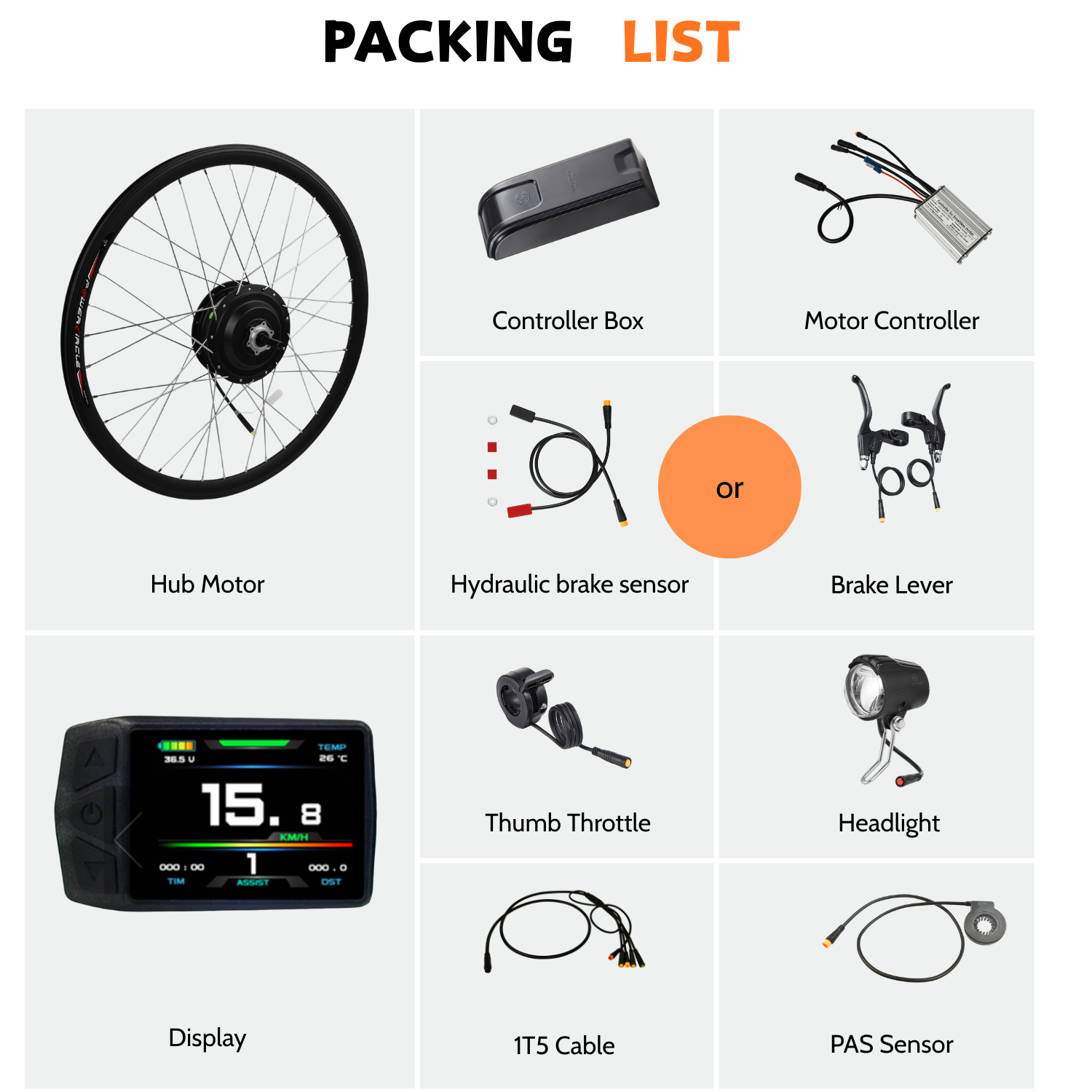

Package include:

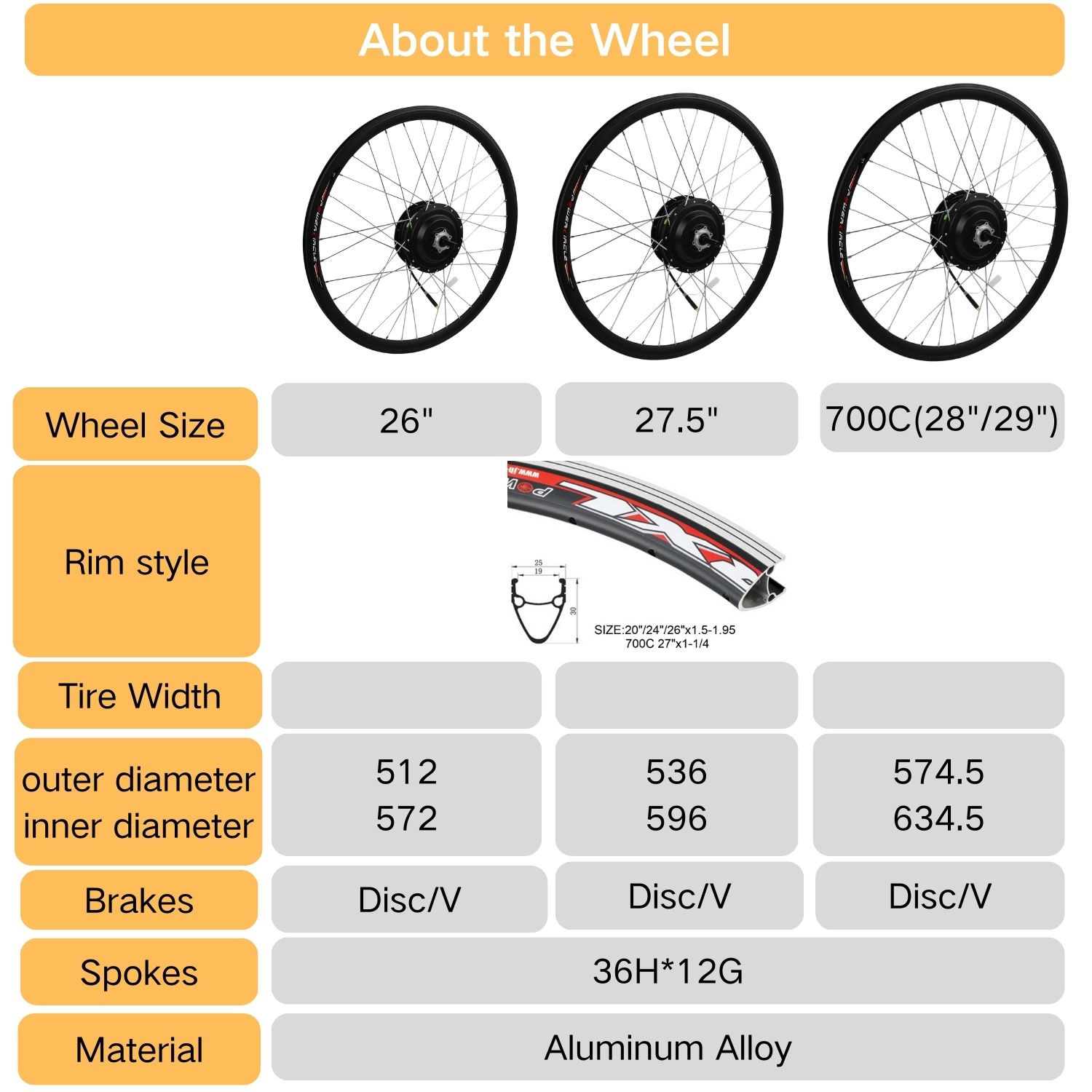

1.Hand built double walled rim complete with 12G spokes
26 inch outer diameter 572MM. inner diameter 512MM
27.5 inch outer diameter MM. inner diameter MM
28 inch and 700C outer diameter 634.5MM. inner diameter 574.5MM
2.KT kunteng Sine Wave Controller

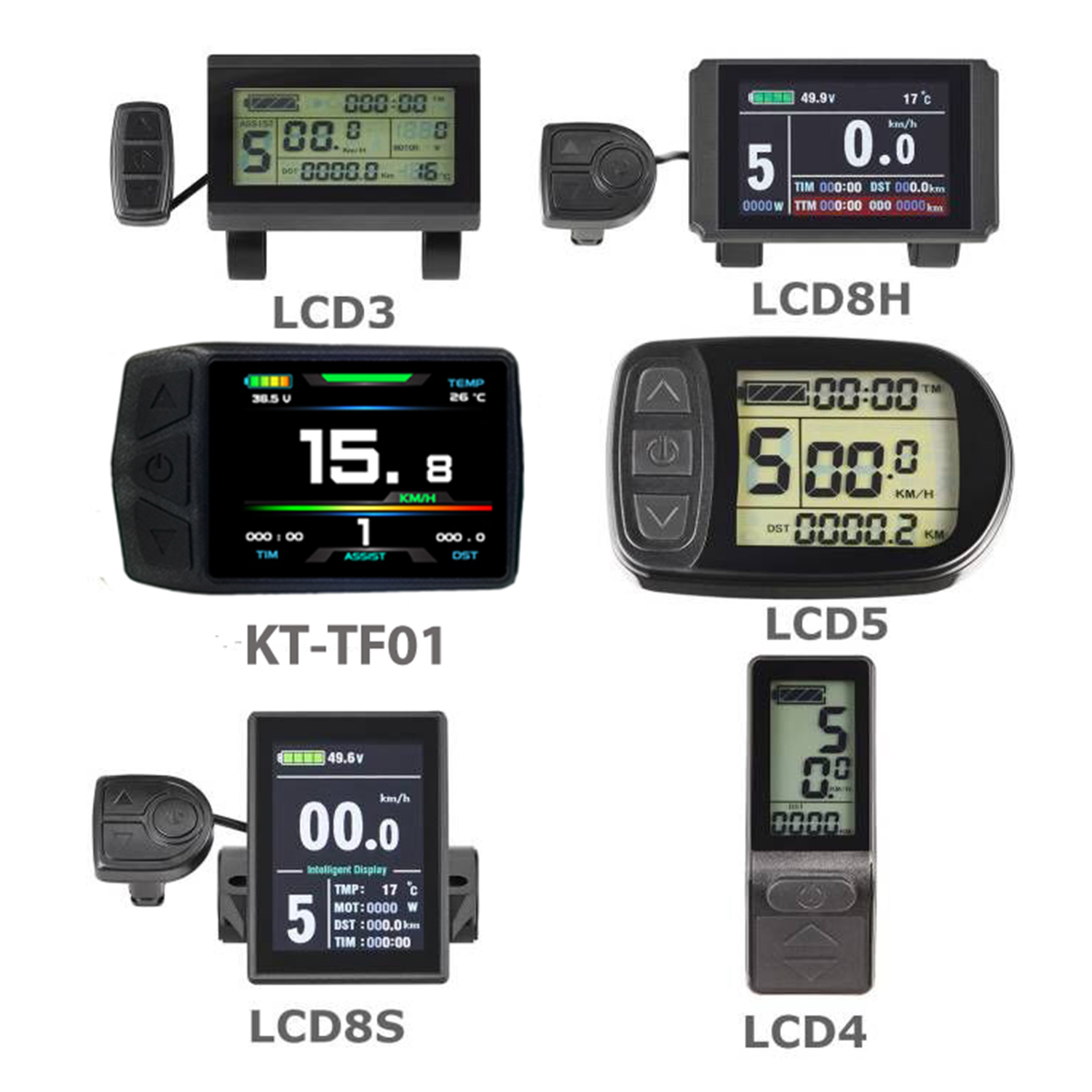

3.LCD: KT-TF01,fits all KT(kunteng) series LCD,Note the connector
4.Wuxing Brand Throttle
5.Wuxing Brand Brake Lever,Fits bafang oil Hydraulic Brake Sensor(Not included)
6.PAS: Dual Hall Sensor
7.Wuxing Brand front LED light
8.Controller case

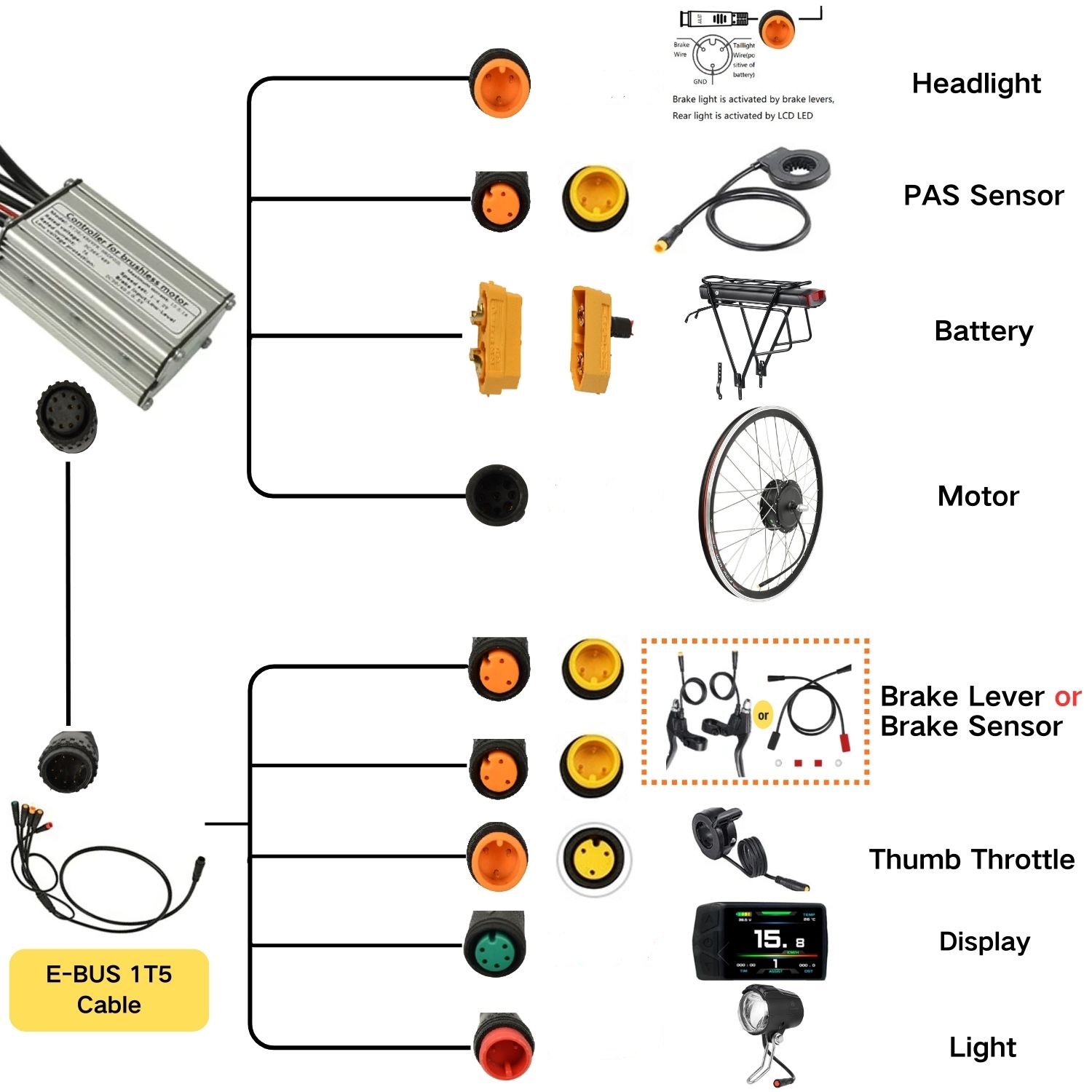

9. 1 to 5 cable

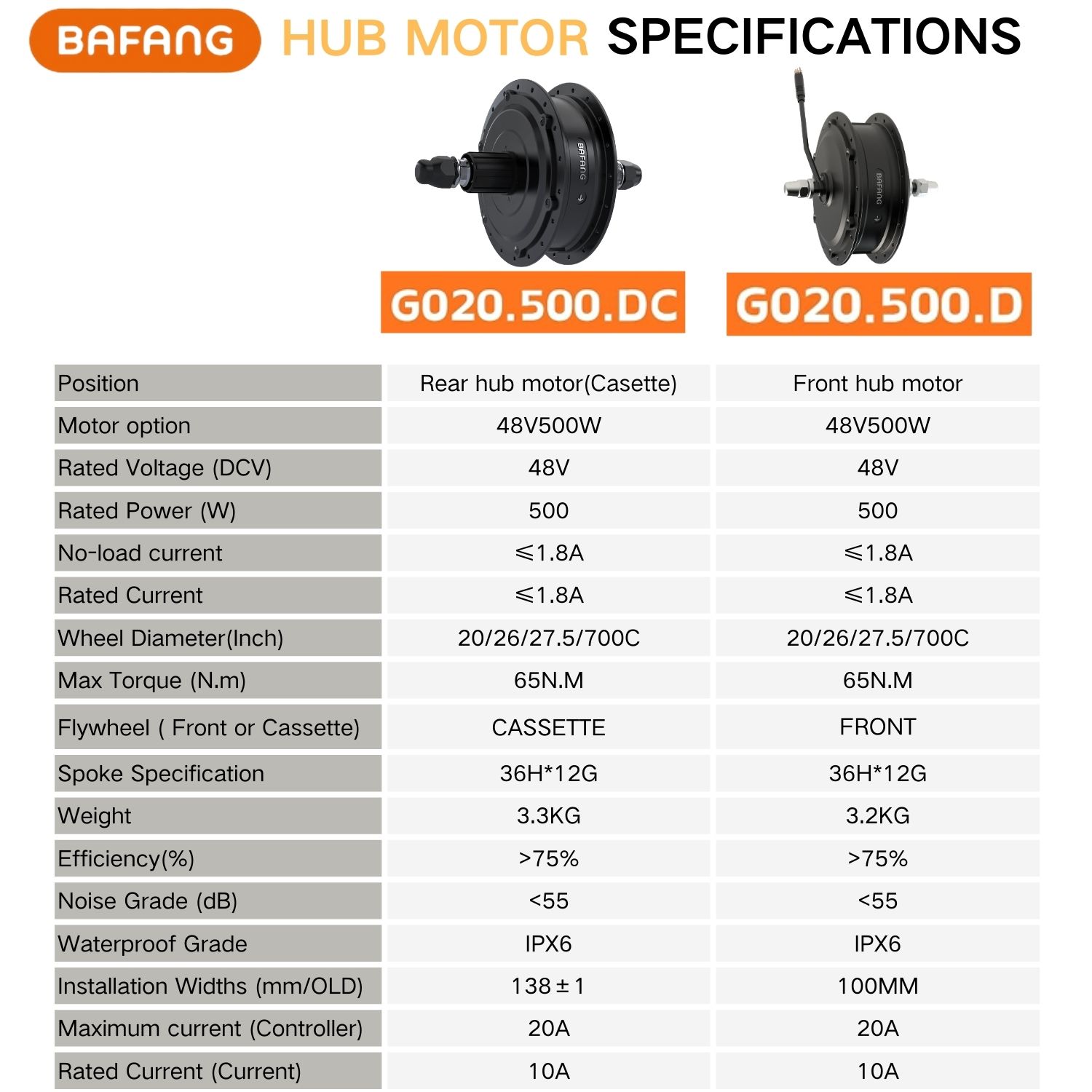

Bafang rear hub spec

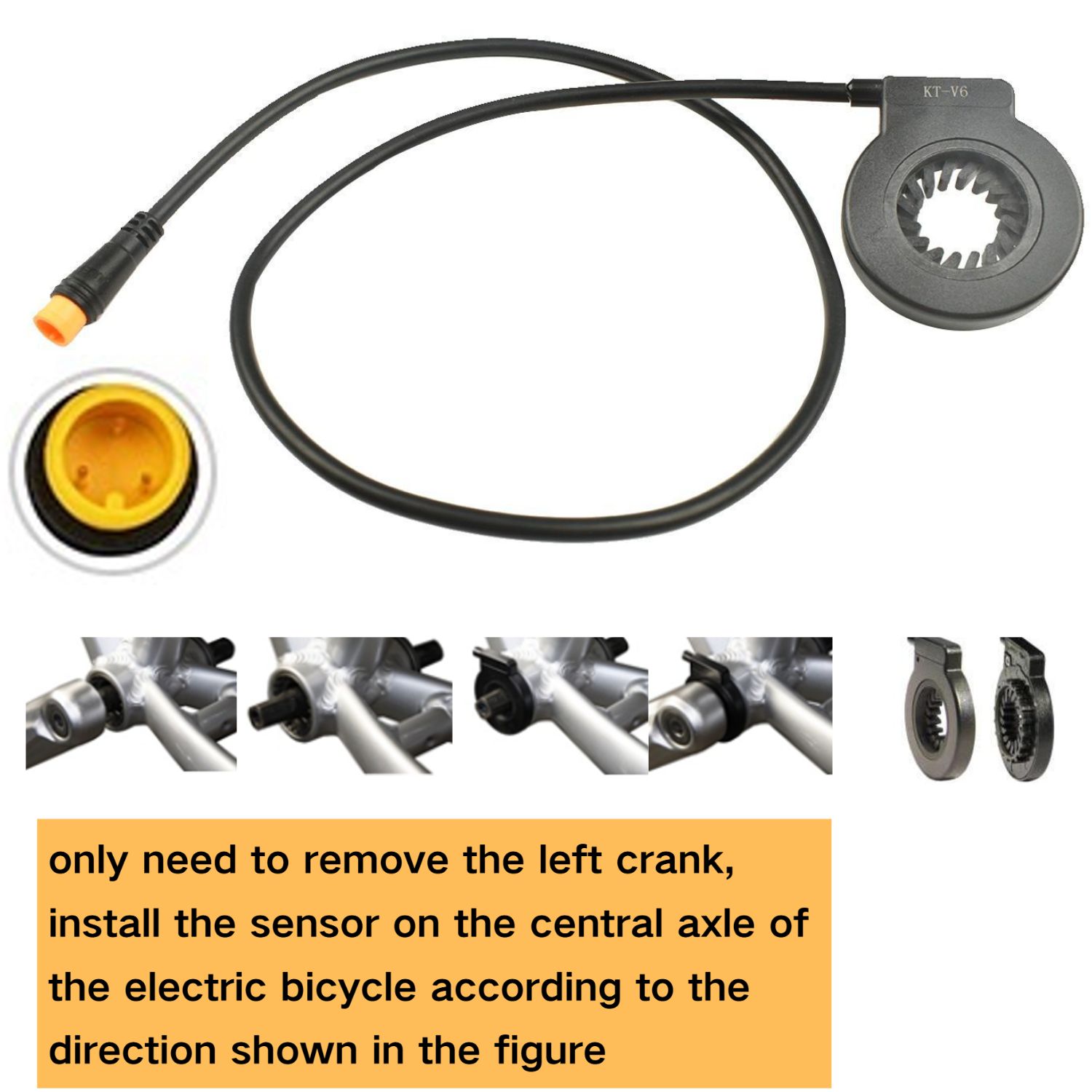

There is one Left PAS Sensor, you must install the PAS same as the photos

Pay attention to the positive and negative poles,If the installation is wrong,Controller will be burned, No warranty for this way


Warranty:
1 year (based on the purchase data): Free repair,buyer pay for return postage,
 resend postage free,buyer should return to United Kingdom or France or China for repair.
