KT kunteng Controller Electric Bicycle Hub Motor ebike Controller 36V/48V 250W 36V/48V 500W 1000W Brushless DC Sine Wave sensor Controller
Note:

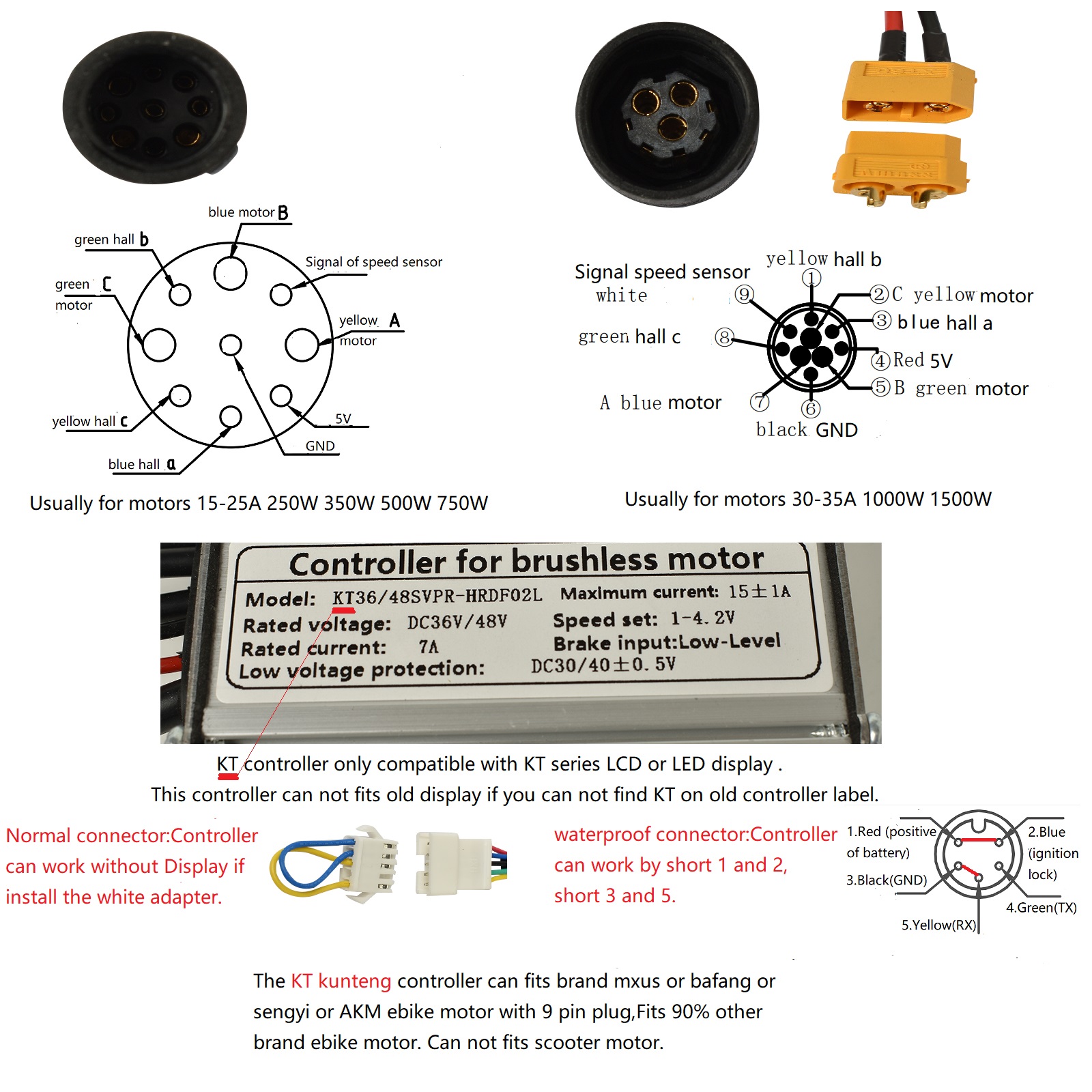

This is sensor controller, so controller has three big cable and five sensor wires and one speed sensor wire. you motor must have 8pcs wires(None speed signal) or 9pcs wires, If you motor just three big cable,please buy sensorless controller
KT controller can work with geared or gearless motors,aslo work with Brake Rear Light.
XF07, XF08, XF08C motors, KUNTENG BRAND controller set P1=88, one speed measurement signal. Number of magnets=20, gear ratio=1:4.4
P1 = Number of magnets * Reduction ratio 20 * 4.4 = 88
XF15F, XF15R, XF15C motors, KUNTENG BRAND controller set P1=100, one speed measurement signal. Number of magnets=20, gear ratio=1:5
P1 = Number of magnets * Reduction ratio 20 * 5 = 100
36V or 48V 250W 15A Brushless DC Sine Wave ebike Electric Bicycle Hub Motor Controller
Technical Data:
Input Voltage: DC 36V/48V or 36V/48V (Universal)
Min. Voltage: DC30V/40±0.5V or DC30V/40±0.5V
Max. Current: 15±1A
Speed set: 1-4.2V
Brake Input: Low-Level
Size: 86x52x31mm
Color: Silver
Weight: 230g
6 pcs stronger MOSFET
Applicatoin: Max. 36V/48V 250W or 48V 350W
Fits Bafang 8FUN MXUS sengyi AKM 250W 36V/48V 250W or 48V 350W sensor motor
Connector with XT60, We will update photo to XT60 connector
36V/48V 500W 20A Brushless DC Sine Wave sensor Controller ebike Electric Bicycle Hub Motor Controller
Technical Data:
Input Voltage: DC 36V or 48V (Universal)
Min. Voltage: DC30V/40±0.5V
Max. Current: 20±1A
Speed set: 1-4.2V
Brake Input: Low-Level
Size: 96x61x35mm
Color: Silver
Weight: 270g
6 pcs stronger MOSFET
Applicatoin: Max. 48V 500W or 36V 350W
Fit bafang 8FUN MXUS sengyi AKM 48V 500W or 36V 350W sensor motor
Connector with XT60, We will update photo to XT60 connector
36V/48V 1000W Brushless DC Sine Wave sensor Controller ebike Electric Bicycle Hub Motor Controller with right output
KT controller can work with geared or gearless motors
Parts Including:
36V/48V 1000W DC Sine Torque Simulation Square Wave Controller (36V or 48V Universal)
If you don't buy LCD/LED, we will send special connector free.
Technical Data:
Input Voltage: DC 36V or 48V (Universal)
Min. Voltage: DC30V/40±0.5V
Max. Current: 35±1A
Speed set: 1-4.2V
Brake Input: Low-Level
Size: 193x84x43mm
Color: Silver
Weight: 560g
12 pcs stronger MOSFET
Applicatoin: Max. 36V 1000W or 48V 1000W
Advantages:
This controller can working without the PAS(Pulse Padel Assistant Sensor)
Sine Wave Controller (more stable, high efficiency, low current consumption, long life)

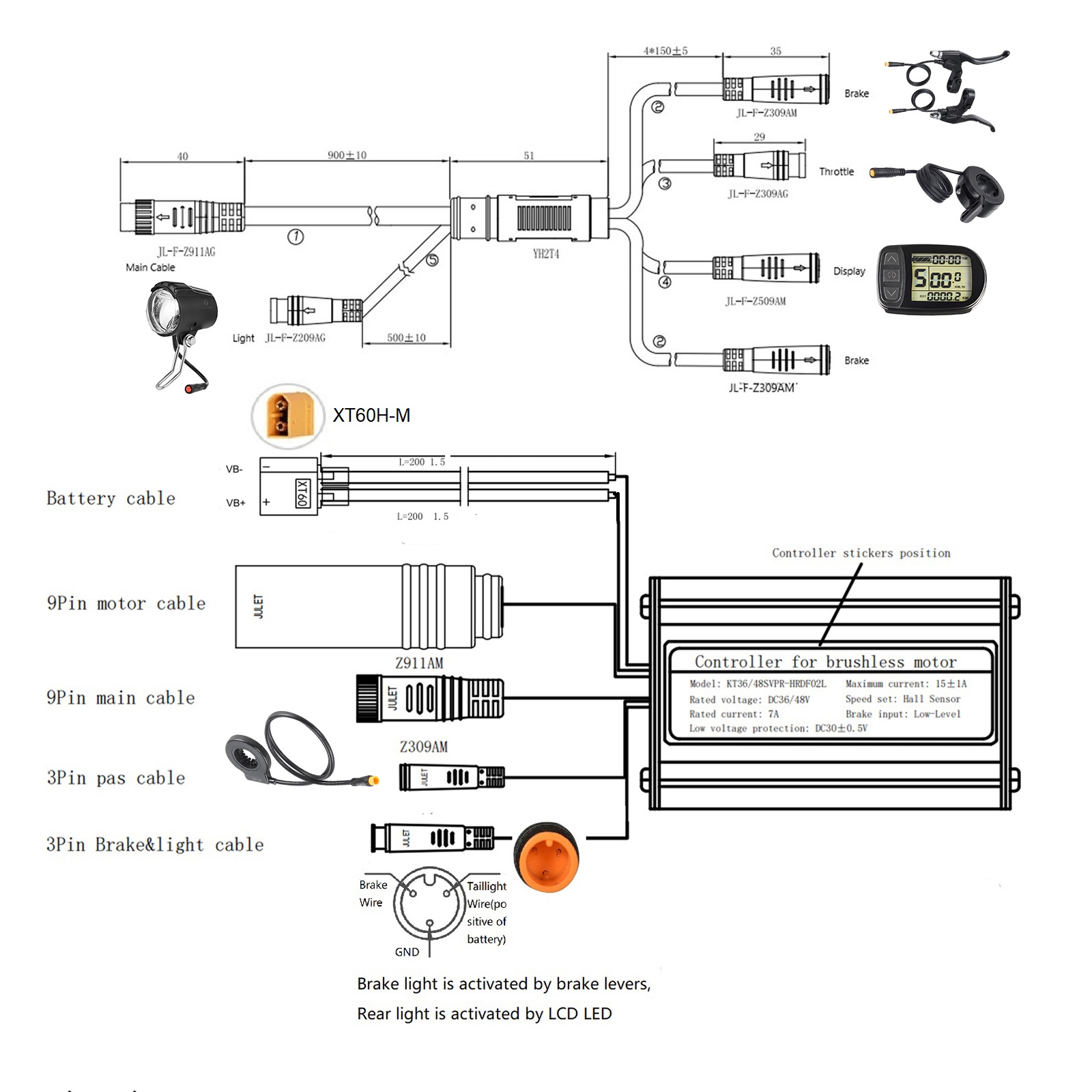

Support hydraudic brake sensor or brake sensor connector
Support LED Control Panel or LCD Control Panel
Packaging includes:
1 pcs 36V/48V 250W 15A DC Sine Wave Controller or 36V/48V 500W DC Sine Wave Controller or 36V/48V 1000W DC Sine Wave Controller
If you don't buy LCD/LED, we will send special connector free.
Headlight + taillight less than 3.5W, brake light 2W
