KT-LED890/KT-LCD3/KT-LCD4/KT-LCD5//KT-LCD8S/KT-LCD8H Meter for KT-Series Controlers

Price:
    Please select the information you wantX
  • Model:
    KT-LED890-24V
    KT-LED890-36V
    KT-LED890-48V
    KT-LCD3
    KT-LCD4
    KT-LCD5
    KT-LCD8S
    KT-LCD8H
  • Ships From:
    China
    Germany Orange Connex warehouse
    Germany
Quantity:
-
+
(2002 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from

From Pswpower

If you from United Kingdom,Please buy from China or Germany or UK stock,Because OrangeConnex dot com can not delivery the goods from Germany Orange Connex warehouse to Kingdom




KT-LED890 E-Bike LED Meter for KT Series Controllers. It only fits KT series controllers. It is not suitable for other controllers.



It can display speed. The parameter in this kind of LED meter can be copied from the KT-LCD1 display. So you can buy one KT-LCD1 display for setting many KT LED890 meters parameter.

The function is same as KT-LCD1 except setting by itself. So the KT-LED890 can not be setup by itself. You need to copy parameters from KT-LCD1 or from another KT-LED890.

It is a smart LED panel. You can not test it by only voltage. You need to install it on your E-Bike and pedal for 3-5 seconds. Then the LED panel will show battery level normally.

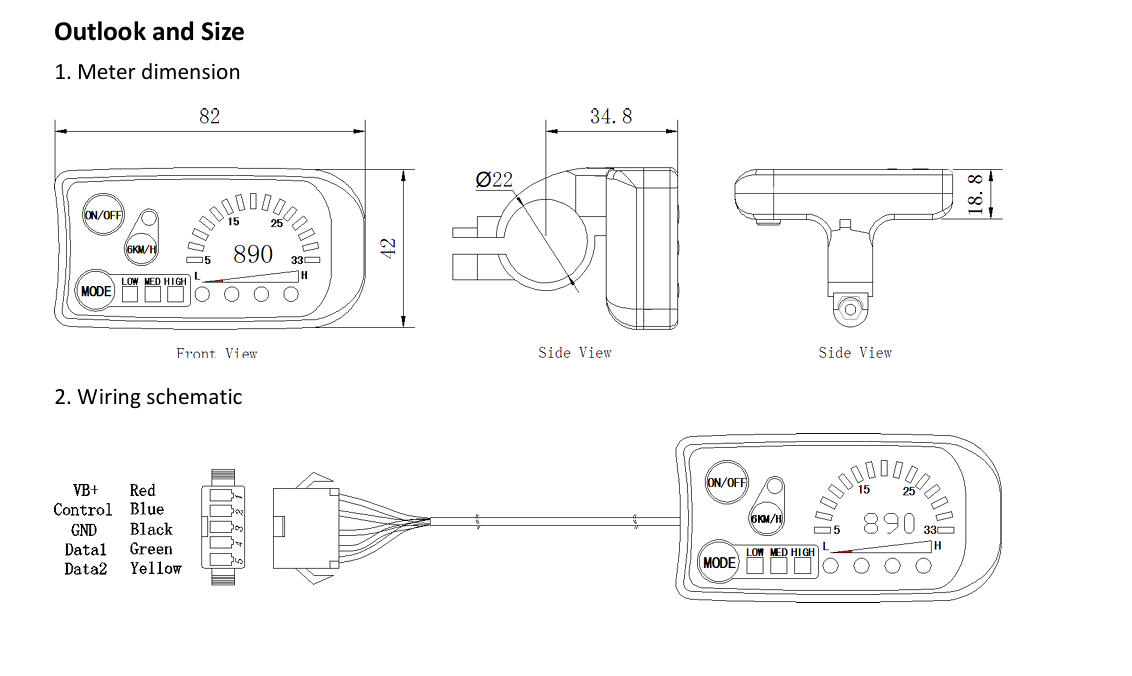

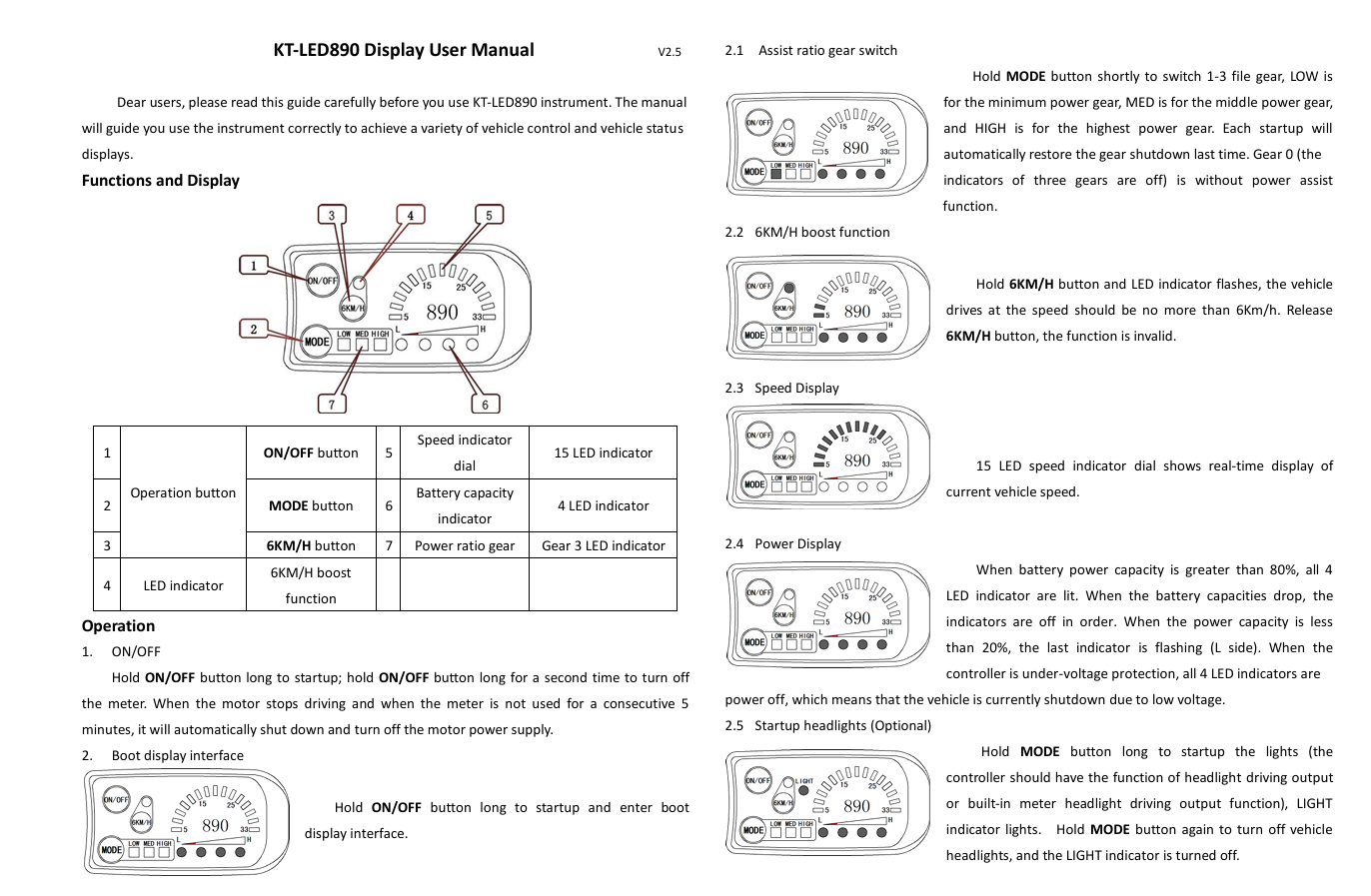

Electric Bicycle Bik    e LED 890 Display     Specifications:


1. ON / OFF function of power supply, it will automatically shut down after standby for 5 minutes;
2. Four-bit intelligent power display can be a true reflection of the state of battery charge to guarantee the riding distance;
3. High, middle and low gears of imitation torque boost of switch gears and gear indicator display, with gear memory function, power on can automatically recover the gear state during power off;
4. 15-bit LED strip speed indicator;
5. 6Km / h boost function, and the boost light is blinking during boost, it can be used by the rider during driving a vehicle, and the vehicle driving will be easy;
6. Under-voltage indication function, when the battery is in under-voltage, the under-voltage indicator flashes;
7. The headlight switch control function, and it can turn on and off lights, when headlights are turned on, the headlight indicator is lit;
8. The adoption of five- line of digital communication is with a self-setting function of versatile parameters, users can adjust the settings such as motor parameters, velocity parameters, speed parameter according to different models;
9. The instrument is with good interchangeability, and different instruments can directly exchange with each other and copy the data parameters;
10. The optional power supply voltage is 24V, 36V and 48V
panel cable Length: 30cm
water proof Cable Length: 22cm+160cm=182cm






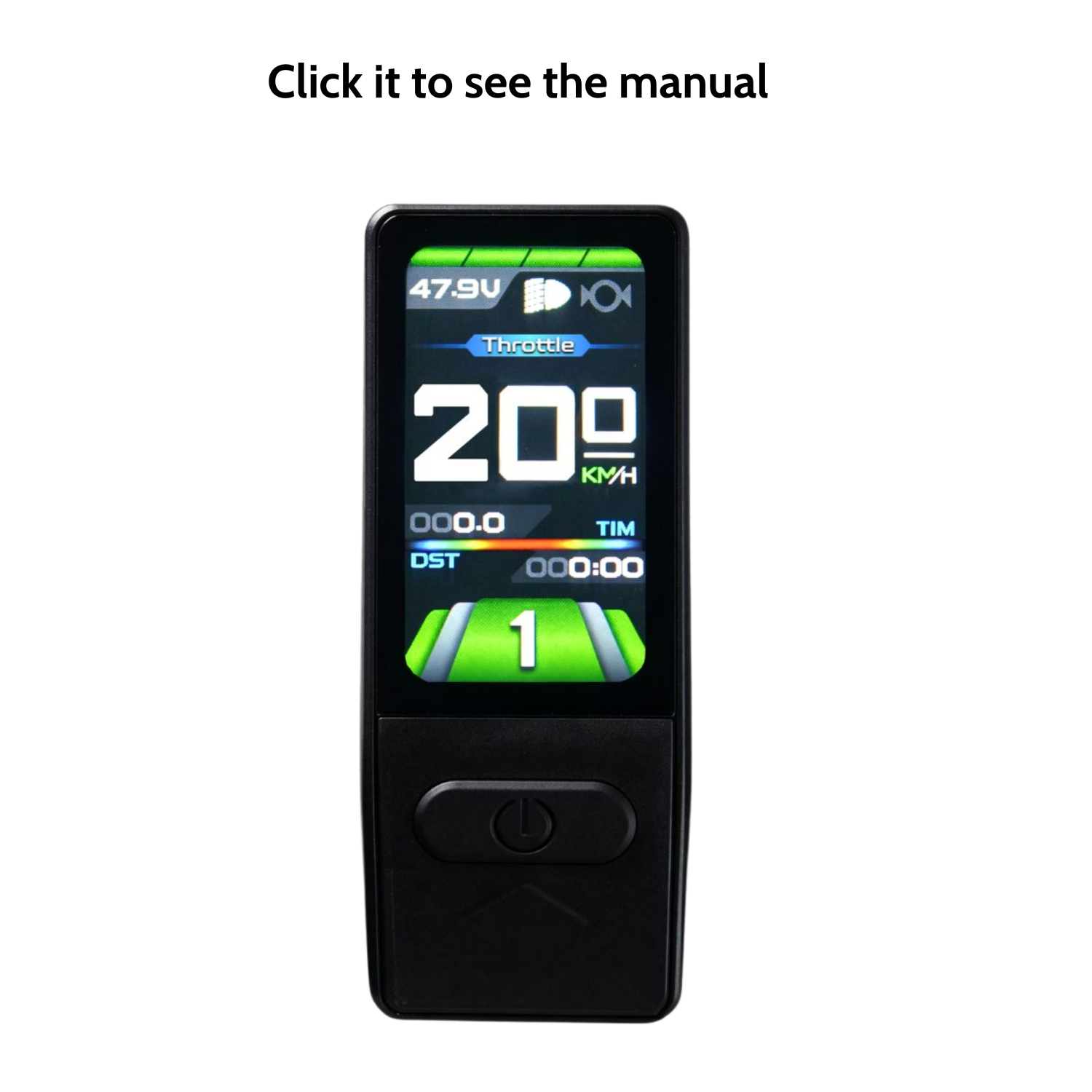

Black KT-LCD3 E-Bike LCD Meter for KT Series Controllers. It only fits KT series controllers. It is not suitable for other controllers.


1. Dimension: 12x64x95mm.
Note: How to determine the value of the parameter P5 ? The formula is LVC+P5/3.77.
For 24V battery, LVC=20V, P5/3.77=1.
For 36V battery, LVC=30V, P5/3.77=1.5.
For 48V battery, LVC=40V, P5/3.77=2.
You can adjust P5 parameter by your own battery discharge curve.
It is a smart LCD. You can not test it by only voltage. You need to install it on your E-Bike and pedal for 3-5 seconds. Then the LCD will show battery level normally.

Product Specifications

1. Data display:it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling parameters;

2. Intelligent power:a true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage;

3. Stalls setting:multi-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state when turned on;

4. Parameter setting:with a number of user parameter setting functions, motor parameters, velocity measurement parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum current parameters and other operating models for settings adjustment ;

5. Data view:Users can view historical driving data and clear accordingly, view single or cumulative riding time, riding mileage, maximum speed and average speed of single riding;

6. Vehicle boosting:With 6Km/h power-assisting functions, the boost logo flashes during boosting, and riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy;

7. Cruise and constant speed:With the setting and display of the cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed;

8. Night driving:With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night;

9. Password setting:With three-bit of power-on password setting;

10. Automatically prompt:For the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle. With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection;

11. Use five-line of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the data exchanges and parameters copy directly;

12. Host part and operation buttons of the meter use sub-structure design, making the operation to be more reasonable and convenient;

13. Supply voltage of 24V, 36V, 48V can be automatically identified and compatible;

14. Black housing

15.panel cable Length: 30cm
16.water proof Cable Length: 22cm+160cm=182cm






Ebike KT-LCD4 LCD Display Meter Panel Electric Bicycle bike Parts for KT Series Controllers 24/36/48V

It only fits KT series controllers. It is not suitable for other controllers.

Description

Model: KT-LCD4

Standard interface: SM-5Y

24/36/48V Universal Voltage
Dimension: 55x40x23mm

Cable length: 180cm

Fits handlebar size: 22.2mm

Weight: 80g



Features:


Single trip time TM and total trip time TTM display.

Single maximum speed MXS and single Average speed AVS display.

Single trip distance DST and total trip distance ODO display.

Real-time trip speed KM/H or MPH display.

Power assistant ratio(or throttle)gear ASSIST switch function.

Cruise function.
6KM/H power assistant push function.

Battery Capacity indicator display.

Brake status display.

Power-on passwoard setting

Parameter copyin

Automatically restore default setting.

User parameter settings.
Start up backlights and headlights.

Data clearing.

Fault code display.

24V/36V/48V voltage can be automatically identified and be compatible.

This display is only compatible with KT controllers.



Package includes:
1x KT-LCD4 display meter
1x Quick start user manual

water proof Cable Length: 22cm+160cm=182cm

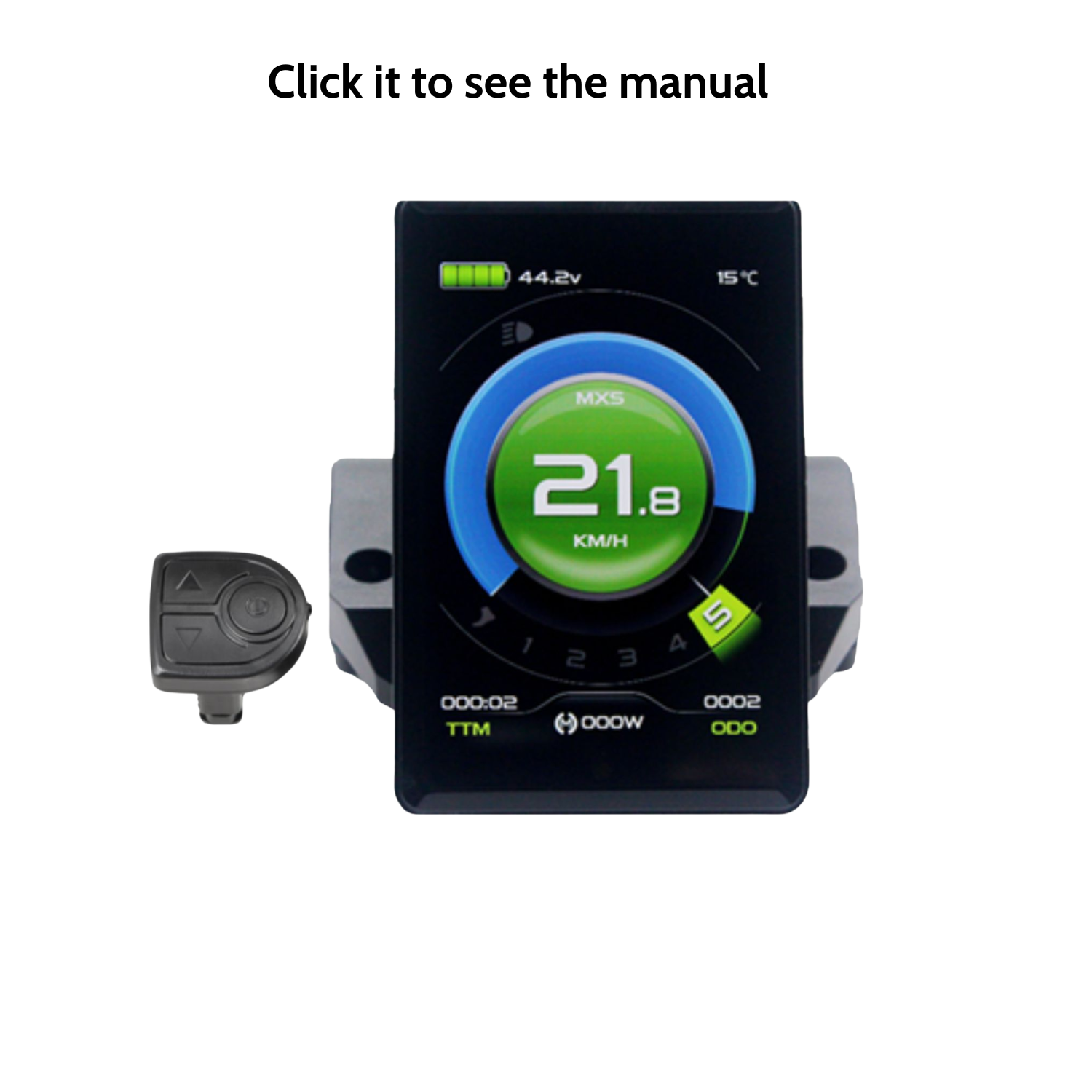

KT-LCD5 E-Bike LCD Meter for KT Series Controllers. It only fits KT series controllers. It is not suitable for other controllers.


1. Dimension: 16.5X51X77mm

2. Voltage: fits for 24V, 36V or 48V batteries.

Note: How to determine the value of the parameter P5 ? The formula is LVC+P5/3.77.

For 24V battery, LVC=20V, P5/3.77=1.

For 36V battery, LVC=30V, P5/3.77=1.5.

For 48V battery, LVC=40V, P5/3.77=2.

You can adjust P5 parameter by your own battery discharge curve.

It is a smart LCD. You can not test it by only voltage. You need to install it on your E-Bike and pedal for 3-5 seconds. Then the LCD will show battery level normally.

The operation manual is same as KT-LCD5 except power and temperature display. You can follow the KT-LCD3 manual to operate the panel.

water proof Cable Length: 22cm+160cm=182cm

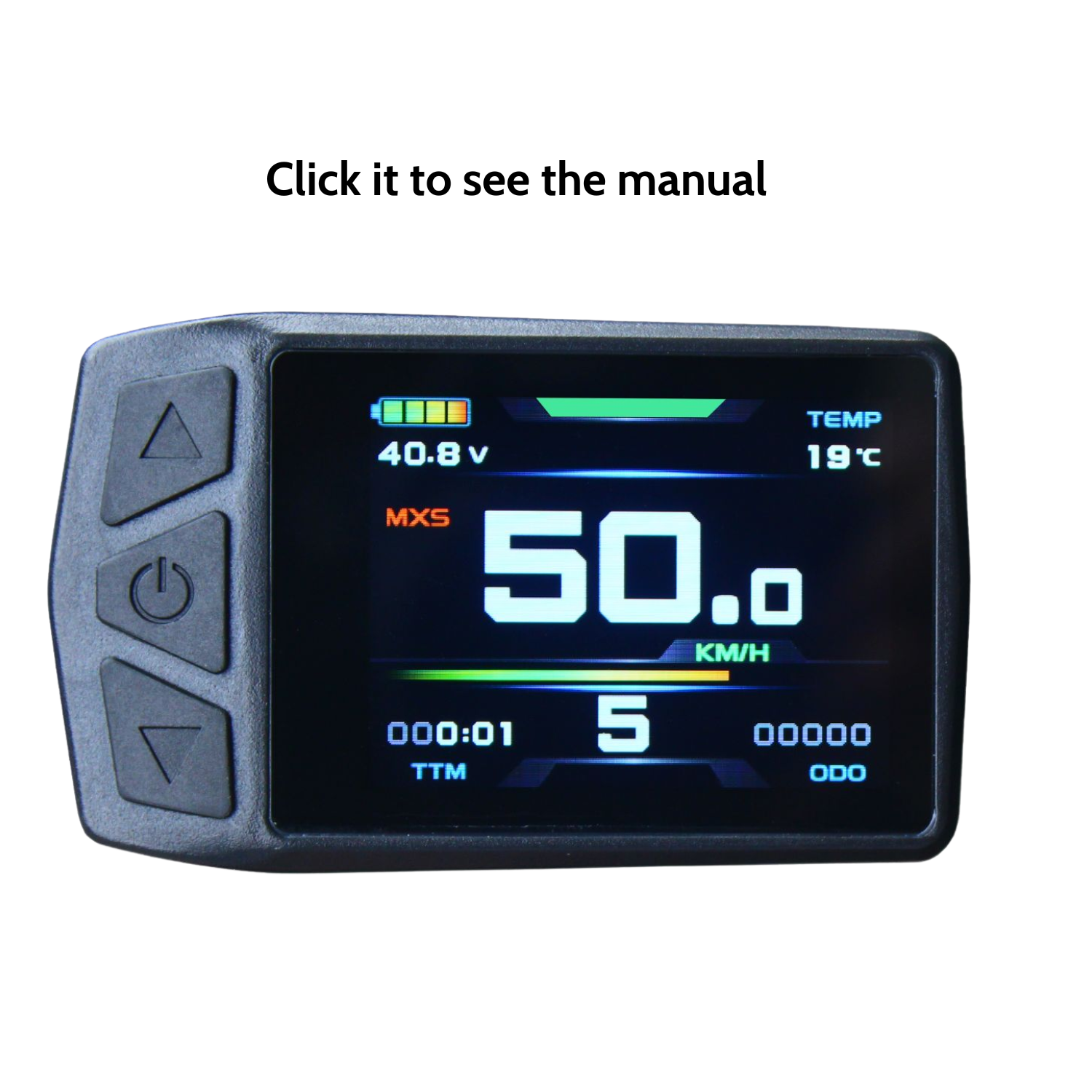

KT-LCD8H E-Bike LED Meter for KT Series Controllers.

Colourful KT-LCD8H LCD Meter with Waterproof plug and USB mobile charge port for KT-Series Controller.

It only fits KT series controllers. It is not suitable for other controllers.


1. Dimension: 20.4x67x109mm.

2. Voltage: fits for 24V, 36V or 48V batteries.



Note: How to determine the value of the parameter P5 ?

The formula is LVC+P5/3.77.

For 24V battery, LVC=20V, P5/3.77=1.

For 36V battery, LVC=30V, P5/3.77=1.5.

For 48V battery, LVC=40V, P5/3.77=2.



You can adjust P5 parameter by your own battery discharge curve.

It is a smart LCD. You can not test it by only voltage. You need to install it on your E-Bike and pedal for 3-5 seconds. Then the LCD will show battery level normally.



Panel cable Length: 30cm

Water proof Cable Length: 22cm+160cm=182cm

Motor power display: always 0 ---solve problem way

Parameter C11 was wrong. It was on 1,
The correct value for LCD8H is 0.
After change it from 1 to 0,
Everything works correctly






KT-LCD8S E-Bike LED Meter for KT Series Controllers.

Colourful KT-LCD8S LCD Meter with Waterproof plug and USB mobile charge port for KT-Series Controller.


It only fits KT series controllers. It is not suitable for other controllers.


1. Dimension: 20.4x67x109mm.

2. Voltage: fits for 24V, 36V or 48V batteries.



Note: How to determine the value of the parameter P5 ?

The formula is LVC+P5/3.77.

For 24V battery, LVC=20V, P5/3.77=1.

For 36V battery, LVC=30V, P5/3.77=1.5.

For 48V battery, LVC=40V, P5/3.77=2.



You can adjust P5 parameter by your own battery discharge curve.

It is a smart LCD. You can not test it by only voltage. You need to install it on your E-Bike and pedal for 3-5 seconds. Then the LCD will show battery level normally.



Panel cable Length: 30cm

Water proof Cable Length: 22cm+160cm=182cm

Motor power display: always 0 ---solve problem way

Parameter C11 was wrong. It was on 1,
The correct value for LCD8S is 0.
After change it from 1 to 0,
Everything works correctly







Average rating: 5.0 based on 1 reviews
